TEUFELBERGER treeMOTION Hip to Leg Connection Kit
Teufelberger replacement hip/leg connector for treeMOTION climbing harness
Hip to Leg Connection Kit
Replacement webbing strap simply girth-hitches in place after removal of the worn out strap.

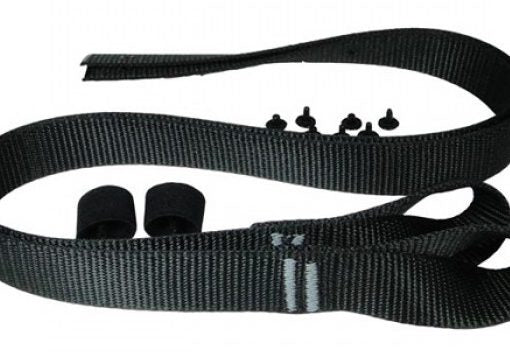

2 x Webbing straps
4 x Pair of plastic rivets
2 x Elastic loops
1 x Instruction manual
Fitting instructions
1. Remove the used connection being careful not to damage any other part of the harness.
2. Thread the replacement web- bing part under the red lying ring as shown in the image (the cut end of webbing is facing the harness). Do not pull the stitching beyond the ring.
3. Pass the other end of the web- bing part through the loop.
